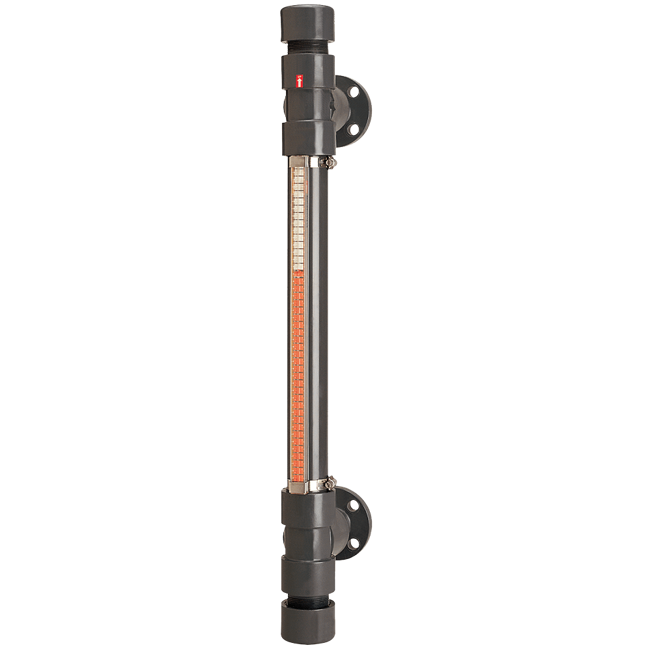

SureSite Plastic Visual Level Gauge
Brand: Gems Sensors, IncThe 2" Schedule 80 pipe design is ideal for use on chemical storage tanks, or with almost any liquid where temperature and pressure requirements are moderate.
All SureSite Indicators feature the same patented flag and guide assemblies used on our alloy versions, so you can be assured of excellent visibility and long-life reliability.
Features- Temperatures to 139° C (280° F)
- Pressures to psi: 150 (kPa: 1,030, bar: 10.3)
- Up to 19 feet (5.8 meters) of continuous visual indication
Specifications
Brand
Enclosure, Body Material
- CPVC
- PVC
- PVDF
Flange Size - 1” (DN 25)
- 1" (DN 25) - 150# ANSI
Flange Size - 1/2” (DN 15)
- 1/2" (DN 15) - 150# ANSI
Flange Size - 2” (DN 50)
- 2" (DN 50) - 150# ANSI
Length
- Length of Indication: Max.
Materials of Construction
- Flag Indicator Material: Plastic
- Float: CPVC
- Float: PVC
- Float: PVDF
Mounting
- Typical AM: Top & Bottom
- Typical BM: Side & Side
- Typical CM: Top & Side
- Typical DM: Side & Bottom
NPT Connection
- 1" NPT Female
- 1" NPT Male
- 1/2" NPT Female
- 1/2" NPT Male
- 2" NPT Female
- 2" NPT Male
Pressure Range
- psi: 150 (kPa: 1,000, bar: 10)
Temperature Range
- 139° C (280° F)
