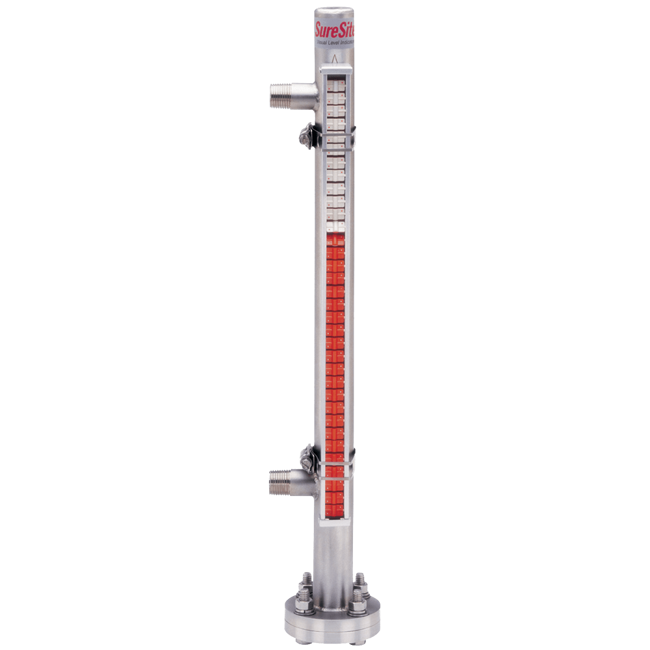

SureSite Mini Visual Level Gauge
Brand: Gems Sensors, IncUse these Mini SureSite Indicators where space is tight - they feature a diameter of only 1-1/4"! They can replace existing, antiquated sightglasses for excellent external, visual liquid level indication.
Mini SureSite Indicators are ideal for use with clean, low viscosity liquids.
Features- Lengths to over 20 feet (6.1 meters)
- 316 stainless steel construction
- Pressures to psi: 400 (kPa: 2,700, bar: 27) - Temperature to 204° C (400° F)
Specifications
Brand
Applications
- Boilers
- Food & Beverage
- Medical Equipment
- Pharmaceutical
- Semiconductor Manufacturing
Enclosure, Body Material
- 316 Stainless Steel
Flange Size - 1” (DN 25)
- 1" (DN 25) - 150# ANSI
- 1" (DN 25) - 300# ANSI
Flange Size - 1/2” (DN 15)
- 1/2" (DN 15) - 150# ANSI
- 1/2" (DN 15) - 300# ANSI
Flange Size - 3/4” (DN 20)
- 3/4" (DN 20) - 150# ANSI
- 3/4" (DN 20) - 300# ANSI
Length
- Length of Indication (Uninterrupted): 240" (610 cm)
Materials of Construction
- Flag Material: Aluminum 204° C (400° F)
- Flag Material: Plastic at 148.9° C (300° F)
Mounting
- Typical AM: Top & Bottom
- Typical BM: Side & Side
- Typical CM: Top & Side
- Typical DM: Side & Bottom
NPT Connection
- 1/2" NPT Female
- 1/2" NPT Male
- 3/4" NPT Female
- 3/4" NPT Male
O-Ring Material
- Ethylene Propylene (EPR)
- Viton
Pressure Range
- psi: 0 to 400 (kPa: 0 to 2,758, bar: 0 to 27.58)
Temperature Range
- Up to 204° C (400° F)
Welded Connection
- 1/2" Butt Weld End
- 1/2" Socket Weld End
- 3/4" Butt Weld End
- 3/4" Socket Weld End
- Pharmaceuticals
- Medical equipment
- Food beverages
- Semiconductor manufacturing
- Boilers
