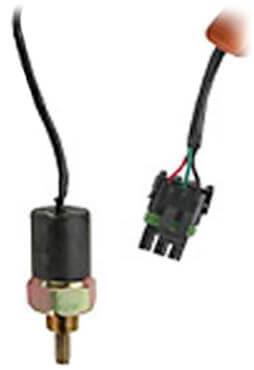

PDTF Series Temperature Switch
Brand: Gems Sensors, IncGems™ PDTF Series temperature switch is a factory set sensor for the protection of all types of internal combustion engines, pumps, compressors, gear boxes, hydraulic reservoirs, marine and industrial power plants.
Model PDTF will withstand acceleration to 8G. Its compact and rugged construction allows it to be mounted in the toughest OEM applications.
The PDTF utilizes a liquid filled capillary to sense temperature changes. The liquid expands as the temperature increases causing the capillary pressure to increase.
Features- 70° to 285° F (20° to 140° C)
- Withstands Acceleration to 8G
- Small Capillary for harsh applications
Specifications
Brand
Temperature Range
- 70° to 285° F (20° to 140° C)
Process Connection
- 3/8" NPT Male
- 1/2" NPT Male
Certifications & Approvals
- CE
Switch Rating
- Resistive 5 Amp
- Inductive 2 Amp @ 12/24 Vdc and 125/250 Vac
Housing Material
- Zinc-Plated Steel
Capillary Material
- Brass
Environmental Protection
- IP65
Maximum Operating Pressure
- 350 psi (25 bar)
All types of internal combustion engines, pumps, compressors, gear boxes, hydraulic reservoirs, marine and industrial power plants.
