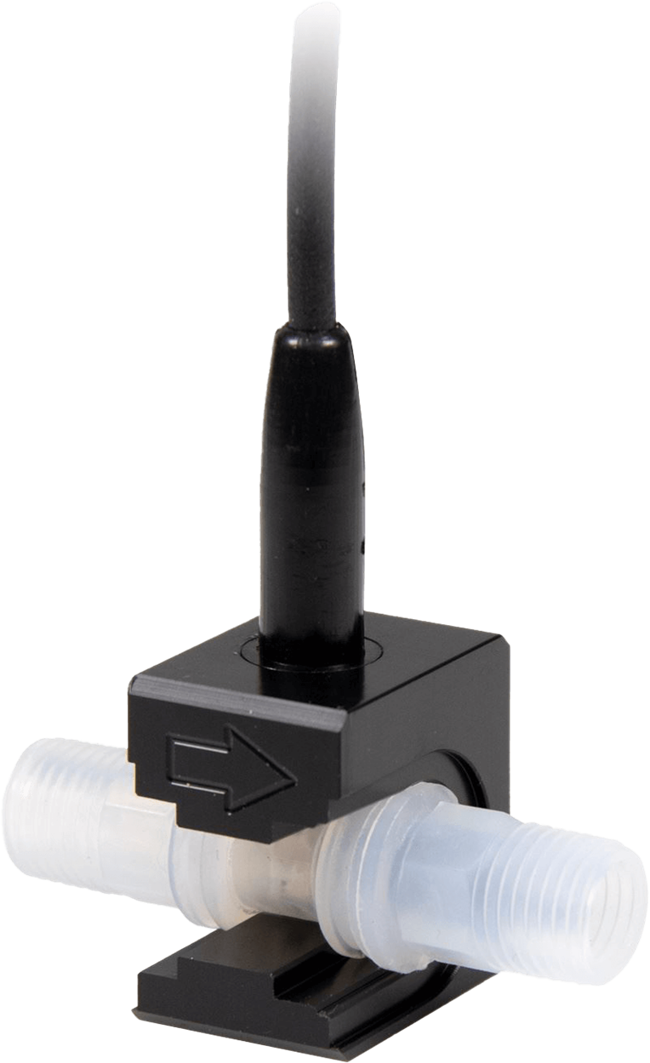

PFA Clamp Flowmeter
Brand: Equflow BVThe PFA Clamp flowmeter is designed to perform an easy and fast exchange of the wetted parts.
Features- Infrared (IR) turbine rotor reflection results in accurate and repeatable flow measurements
- High chemical resistance
- High resolution square wave output
- Performs an easy and fast exchange of the wetted parts
- With screw gap to mount on to your device or system
- Small in size
- Wetted parts can be sterilized up to 150 °C
Specifications
Brand
Inner Diameter
- 4.6 mm
- 9.1 mm
Linear Flow Range
- 0.1 - 1.8 L/min
- 1.0 - 20.0 L/min
Minimum Flow
- 0.06 L/min
- 0.5 L/min
Accuracy
- 1 % of Reading
Repeatability
- < 0.15 %
Wetted Parts
- PFA / Ruby
Tube Connection
- 7 mm hose barb / 1/8" NPT
- 12.5 mm hose barb / 1/4" NPT
Tube Length
- 52 mm
- 61 mm
Liquid Temperature
- -20° to +80° C
Maximum Pressure
- 20 bar
- 15 bar
Viscosity
- 0.8 - 10 cSt
Average K-factor
- 120,000 pulses/L
- 5,500 pulses/L
Power Supply
- 5-24 Vdc
Output Signal
- 5-24 V square wave
Power Consumption
- 34 mA at 5 V
Default Cable
- PVC 1 m
