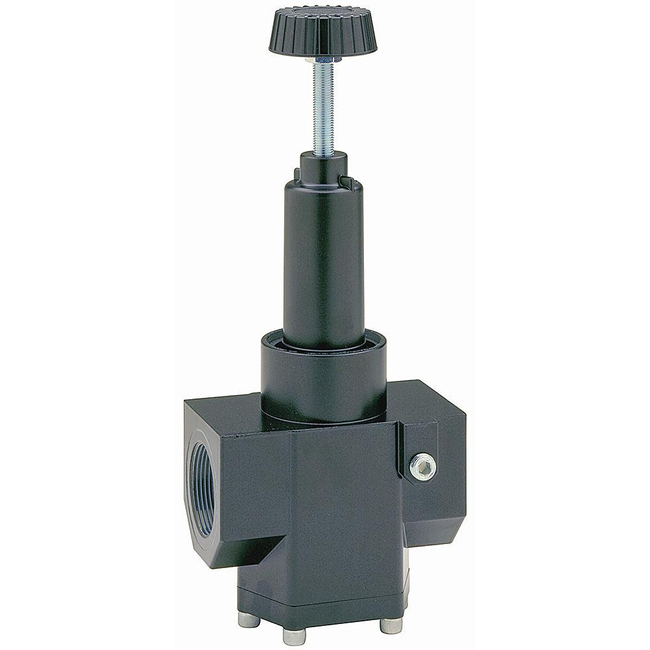

High Flow Pressure Regulator - 09R Series (Large)
Brand: Parker Hannifin09R non-modular high flow regulators provide a convenient and low cost method to reduce a supplied air pressure to desired outlet pressure.
09R provides quick and accurate pressure regulation for the majority of industrial applications.
Specifications
Brand
Body Material
- Zinc Alloy, Die Cast
Flow Rate (dm3/sec)
- 472
Flow Rate (scfm)
- 1000
Gauge Port
- 1/4"
Maximum Inlet Pressure (bar)
- 20
Maximum Inlet Pressure (psig)
- 300
Operating Temperature (°C)
- 0° to +65.5° C
Operating Temperature (°F)
- +32° to +150° F
Port Size
- 2"
Port Type
- NPT
Pressure Control Range (bar)
- bar: 0 to 8
Pressure Control Range (psig)
- psig: 2 to 125
Product Type
- High Flow Regulator
Seal Material
- Nitrile
Weight (kg)
- 53
Weight (Lbs)
- 10.82
