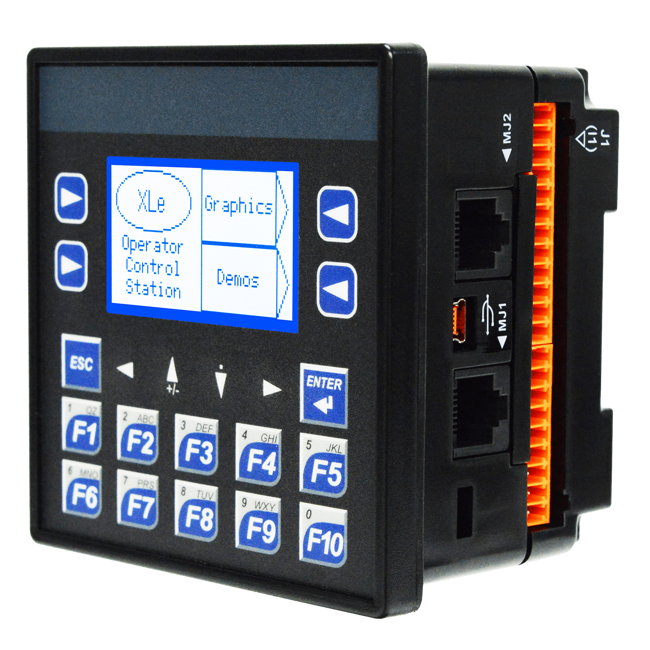

XLEe
Brand: Horner
All XLEe units feature a built-in logic engine, operator interface, networking and I/O, and Ethernet standard.
Features- Standard Ethernet
- 128×64 graphical display
- 20-key keypad with function key and numeric entry capability
- Logic engine features 256KB of application memory with a 0.7mS/K logic scan.
- (2) RS-232/485 ports support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols
- integrated CsCAN port
- Removable Mass Storage device
- CANopen Master/Slave Support
Specifications
Brand
Ladder Logic Memory
- 256 KB
Logic Scan Rate
- 0.7 mS/K
Removable Memory
- microSD
Local Comment Storage
- Yes
Floating Point Support
- Yes
AutoTune PID Capable
- Yes
Characters / Pixels
- 128 x 64
Display Technology
- Transflective LCD
Character Height
- Selectable Fonts
Number of Pages
- 1023
Fields or Objects Per Page
- 50
Total Keys
- 20
Function Keys
- 10
OEM Faceplate Available
- Yes
Built-In I/O Points
- 22-44
SmartStix, SmartRail, SmartBlock I/O Support
- Yes, CsCAN
Digital Inputs / Outputs, Maximum
- 2048 / 2048
Analog Inputs / Outputs, Maximum
- 512 / 512
General Purpose Registers (Words)
- 9,999
General Purpose Internal Coils (Bits)
- 4,096 (2,048 retentive)
Ethernet Support
- 10/100 Support w/ Auto MDIX Support
Remote Access
- WebMI, EnvisionRV
Remote File Access
- via EnvisionFX
Total Active Ports
- 2
RS-232 Ports / RS-485 Ports
- RS-232 / RS-485 (x2)
PLC / Drive Protocols
- Yes
RTU / Modbus Master / Slave
- Yes
Serial ASCII In / Out
- Yes
USB Ports (A and Mini-B)
- no
Integrated CAN Networks
- 1
Supported CAN Networks
- CsCAN, CANopen (Firmware change), DeviceNet Master (-33 option), SAE J1939 (-44 option)
Maximum CAN Distance
- 500 m per segment, 4 segments Max.
Programming Over CAN
- CsCAN only
Height
- 3.780" / 96.00 mm
Width
- 3.780" / 96.00 mm
Depth
- 2.264" / 57.5 mm
I/O Module Depth
- COM option adds 0.5" / 13 mm depth
Operating Temperature*
- -0° to 60° C, *Note: -40° C Low Temp Option, Contact Factory
Humidity (Non-Condensing)
- 5 to 95 %
Product Certifications
- CE, C', UL Class I, Div. 2,
Environmental Rating
- NEMA & UL Type 1, 3R, 4, 4X, 12, 12k, 13, ABS
