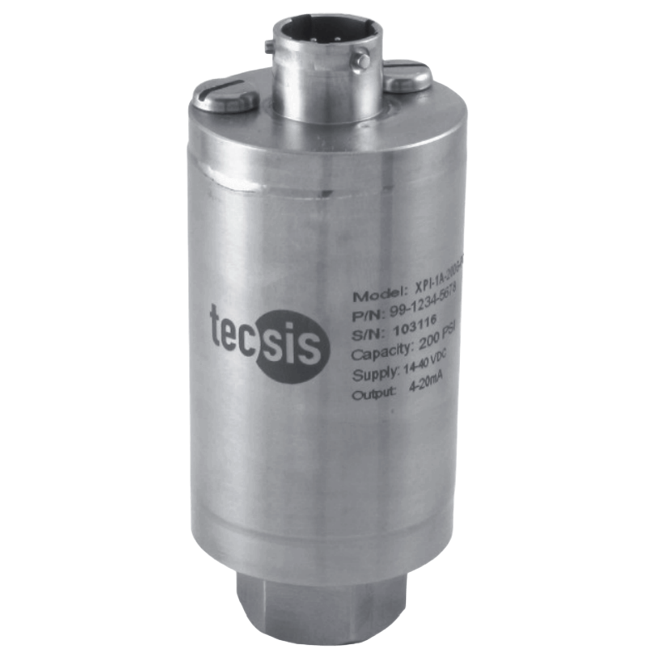

Model XPI-1A Industrial Pressure Transmitter
Brand: TecsisModel XPI is a standard, industrially rugged pressure transducer available with mV/V, 0-5 V or 4-20 mA output.
This medium range pressure sensor covers ranges from 0 to 25 to psi: 0 to 10,000 (kPa: 0 to 68,948, bar: 0 to 689.5) and delivers ±0.15% linearity.
Robust design, welded stainless steel construction, and a wide temperature range makes this pressure sensor ideal for a variety of demanding test and measurement needs.
With a selection of pressure connections and electrical terminations available, the versatile XPI will integrate smoothly into existing or new applications.
Features- 4-20 mA 2-wire output
- Zero and span adjustment
- All stainless construction
- High accuracy
- Wide operating temperature
Specifications
Brand
Approvals & Certifications
- ISO 9001: 2015 Certified
Burst Pressure
- 300 % of Rated Pressure
Compensated Temperature
- 15° to 71° C (60° to 160° F)
Electrical Connectors
- Bendix PTIH-10-6P
Excitation Voltage
- 14-40 Vdc
Hysteresis
- ± 0.05 % of FSO
Linearity
- ± 0.15 % of FSO
NPT Connection
- 1/4" NPT Female
- 1/4" NPT Male
Operating Temperature
- -46° to 121° C (-50° to 250° F)
Output
- 4-20 mA ± 5 % Adjustable
Pressure Range
- bar: 0 to 689.5
- kPa: 0 to 68,948
- psi: 0 to 10,000
Pressure Type
- Absolute
- Gauge
Proof Pressure
- 150 % of Rated Pressure
Repeatability
- ± 0.05 % of FSO
SAE Connection
- 7/16"-20 SAE Female per MS33649-04
- 7/16"-20 SAE Male per MS33656-04
Span & Zero Effect
- Span Effect: ± 0.005 % of Reading/°F
- Zero Effect: ± 0.005 % of FSO/°F
Wetted Materials
- 630 Stainless Steel (17-4 PH)
Zero Balance
- 4 mA ± 5 % Adjustable
