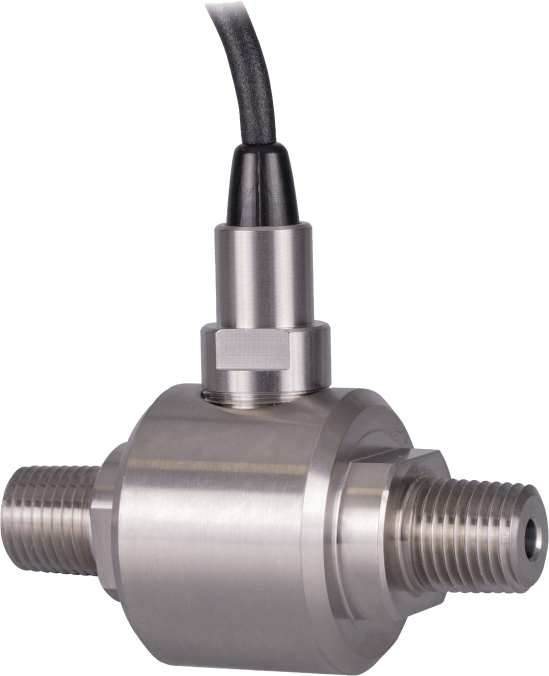

Stainless Steel Flowmeter
Brand: Equflow BVThe Stainless Steel flowmeter is designed for long term use with a robust housing.
Features- Infrared (IR) turbine rotor reflection results in accurate and repeatable flow measurements
- High chemical resistance
- High resolution square wave output
- Wetted parts made out of PVDF or PFA (depending on size), SS316L, ruby bearing, and FPM (Viton®) sealing
- Outstanding performance in higher process pressure (optionally up to 200 Bar)
- Sanitary Tri-Clamp process connector available
Specifications
Brand
Inner Diameter
- 4.5 Low Flow: 4.6 mm
- 4.5: 4.6 mm
- 8.5: 9.3 mm
- 12.5: 14.0 mm
- 25.0: 25.4 mm
Linear Flow Range
- 4.5 Low Flow: 0.07 - 1.0 L/min
- 4.5: 0.1 - 2.0 L/min
- 8.5: 1.0 - 20.0 L/min
- 12.5: 2.5 - 40.0 L/min
- 25.0: 5.0 - 200.0 L/min
Minimum Flow
- 45.5 Low Flow: 0.02 L/min
- 4.5: 0.03 L/min
- 8.5: 0.5 L/min
- 12.5: 1.5 L/min
- 25.0: 3.0 L/min
Accuracy
- 1 % of Reading
Repeatability
- < 0.15 %
Wetted Parts
- 316L Stainless Steel / PVDF / Ruby
O-ring Seals
- Viton or EPDM
Tube Connection
- 4.5 Low Flow: 1/4" BSP/NPT or 3/4" Tri-Clamp
- 4.5: 1/4" BSP/NPT or 3/4" Tri-Clamp
- 8.5: 3/8" BSP/NPT or 1/2" BSP or 3/4" Tri-Clamp
- 12.5: 1/2" BSP or 1" Tri-Clamp
- 25.0: 1" BSP
Tube Length
- 4.5 Low Flow: 69 mm
- 4.5: 69 mm
- 8.5: 81 mm
- 12.5: 72 mm
- 25.0: 90 mm
Liquid Temperature
- -20° to +80° C
Maximum Pressure
- 4.5 Low Flow: 100 bar
- 4.5: 100 bar
- 8.5: 200 bar
- 12.5: 200 bar
- 25.0: 250 bar
Viscosity
- 0.8 - 10 cSt
Average K-factor
- 4.5 Low Flow: 130,000 pulses/L
- 4.5: 100,000 pulses/L
- 8.5: 4,800 pulses/L
- 12.5: 2,000 pulses/L
- 25.0: 250 pulses/L
Power Supply
- 5-24 Vdc
Output Signal
- 5-24 V square wave
Power Consumption
- 34 mA at 5 V
Default Cable
- PVC 1 m
