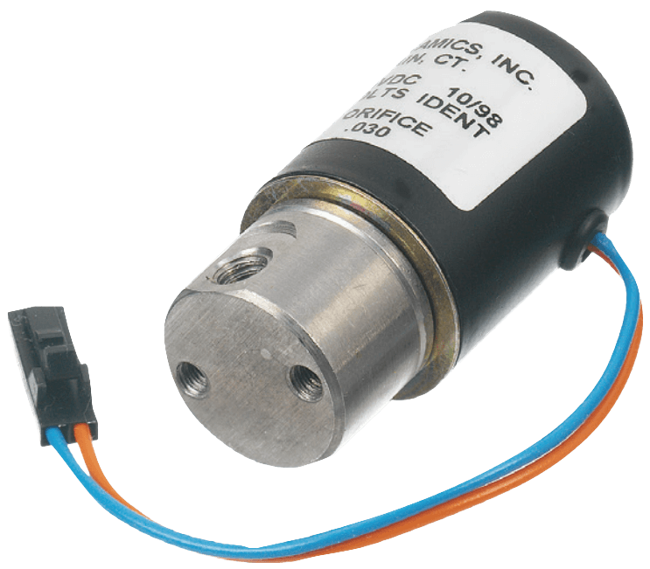

G & GH Series Subminiature Solenoid Valve
Brand: Gems Sensors, Inc
This extremely versatile 2- or 3-way sub-miniature valve gives you the option of choosing the highly durable stainless steel or the lightweight corrosion resistant acetal body, to meet your overall design parameters.
Select stainless steel or Delrin®, and other materials available to resist corrosion in most acids and alkaline solutions, or pick acetal for a tough and heat resistant metal substitute to meet your weight and chemical inert requirements.
Features- MOPD: 250 PSI
- Cv Range: 0.018 to 0.070
- 0.65 Watts or 2 Watts
Specifications
Brand
Electrical - Free Leads
- 26 AWG PVC Leads x 12"
Electrical Connectors
- Encapsulated Coil with 0.110 Spade Terminals
- Tape-Wrapped, Class B, with Lead-wires (12" Long)
Enclosure Finish
- Plunger: PTFE-Coated
Enclosure, Body Material
- 303 Stainless Steel
- Acetal
- Delrin Cone
Flow Rate
- 0.018 to 0.070 Cv
Maximum Opening Pressure Differential
- psig: 10 to 250 (kPa: 69 to 1,724, bar: 0.69 to 17)
Metric Connection
- Manifold Mount: M5 x 0.8 Threaded Stud
NPT Connection
- 1/8"-27 Male NPT
O-Ring Material
- Ethylene Propylene (EPR)
- Neoprene
- Nitrile
- Viton
Power
- 0.65 W
- 2 W
Seat / Seal Material
- Plunger Seal: EPR Ethylene Propylene
- Plunger Seal: Neoprene
- Plunger Seal: Nitrile
- Plunger Seal: Viton
Supply Voltage
- 110-240 Vac
- 5-24 Vdc
UNF/UNC Connection
- Manifold Mount: 10-32 UNF Male-2A Threaded Stud
Valve Type
- 2-Way
- 3-Way
- Normally Closed
- Normally Open
Stainless Steel Bodies:
- Hospital Equipment
- Laboratory Equipment
- Air Sampling Systems
Acetal Bodies:
- Water Purification Systems
- Analytical Equipment
