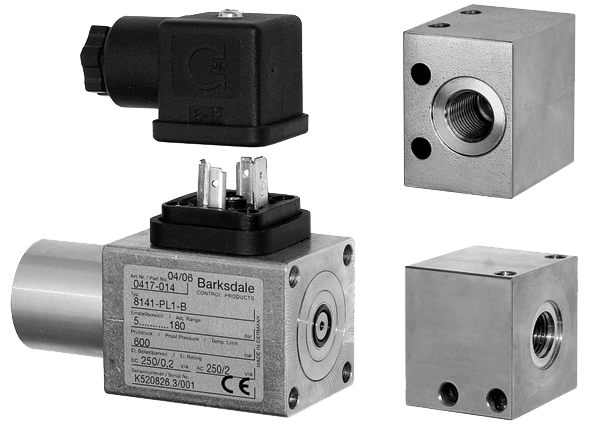

Series 8000 Pressure Switch
Brand: BarksdaleThe Series 8000 mechanical switch incorporates all the manufacturing knowledge and experience that has earned Barksdale's Compact Switches the reputation of top quality and robustness in a competitive industry.
With 6 different pressure ranges between 6 and 8,700 psi (0.4 to 600 bars), customers have the option to select either the diaphragm model or the piston version to meet their specific application needs.
A large choice of pressure port blocks bolted on the CETOP flange provide customers the flexibility to order various pressure ports independent of the switch, keeping inventory costs low.
Features- Proven design in stationary and mobile hydraulic applications
- Wide setpoint pressure range
- Available in wide range of configurations
- Precise setpoint adjustment
- Factory preset or field adjustable
- UL Type 4, IP65, IP67, IP68, Ex ia
- Modular concept
- Manifold mount
- Additional process connections
Specifications
Brand
Adjustment Type
- Factory Set (Pre-Set)
Ambient Temperature Range
- -40° to 75° C (-40° to 167° F)
Approvals & Certifications
- CSA
- GOST-R
- UL
BSP Connection
- G 1/4" Female
Deadband, Approximate
- Less than or Equal to 15 % of, Max.
Diaphragm Material
- Buna-N
- Ethylene Propylene (EPR)
- Viton
Electrical Connectors
- 1/2" NPT Male
- 1/2" NPT Male AWG 20 with 24" (60 cm) Leads (3 Leads + Ground)
- Cable Gland, 27.5" (0.7 m) Cable, Neoprene Jacketed
- DIN 43650-Typical Connector - Base Only
- DIN 43650-Typical Connector - with Base & Plug
- Plug M12, 4-Pol. without Female Plug
Electrical Contacts
- Gold
- Silver
Electrical Rating
- 0.1 A at 125 Vac
- 0.1 A at 30 Vdc
- 0.4 A at 120 Vdc
- 3 A at 250 Vac
- 3 A at 30 Vdc
- 5 A at 125 Vac
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- IP65
- IP67
- IP68
- NEMA 4 / IP65, 67, 68
Flange Type - Other
- 40 mm x 40 mm
NPT Connection
- 1/4" NPT Female
- 1/8" NPT Female
O-Ring Material
- Buna-N
- Ethylene Propylene (EPR)
- Viton
Process Connection Material
- 316 Stainless Steel
Proof Pressure
- bar: 82.74 to 899.8
- kPa: 8,274 to 89,977
- psig: 1,200 to 13,050
Set Point - Decreasing
- bar: 0.4 to 520
- kPa: 40.0 to 52,055
- psig: 5.8 to 7,550
Set Point - Increasing
- bar: 0.6 to 600
- kPa: 60.0 to 59,984
- psig: 8.7 to 8,700
Switch Type
- SPDT Gold or Silver
System Pressure
- bar: 50 to 600
- kPa: 4,999 to 59,984
- psig: 725 to 8,700
UNF/UNC Connection
- 7/16"-20 UNF Female SAE-4
- 9/16"-18 UNF Female SAE-6
- Balers & Compactors
- Factory Automation
- Hydraulic Power Packs
- Machine Tools
- Overload Controls
- Railways
