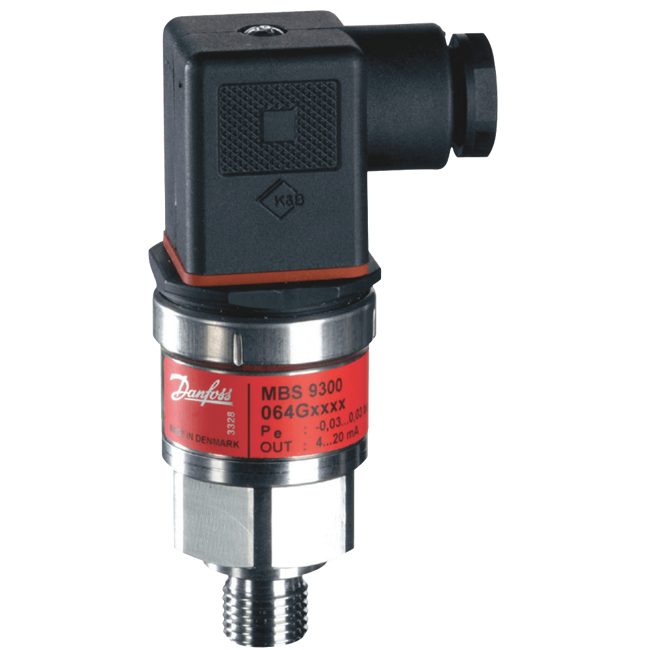

MBS 9300 Low Pressure Transmitter
Brand: DanfossCompact pressure transmitter programme, MBS 9300 is designed for use in marine applications e.g. crankcase and turbocharger filters monitoring as well as applications within level measurement.
The programme covers 4 to 20 mA output signal, gauge versions, pressure span from 40to 250 mbar as well as bidirectional ranges e.g. -70 to 70 mbar etc.
Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
Specifications
Brand
Accuracy
- ≤ ± 0.5 % to ≤ ± 2 % of Full Scale Span Typical Including Non-Linearity, Hysteresis & Repeatability
- Total Error Band: ≤ ± 1.5 % of Full Scale Span
- Total Error Band: ≤ ± 2 % of Full Scale Span
- Total Error Band: ≤ ± 3 % of Full Scale Span
- Total Error Band: ≤ ± 5 % of Full Scale Span
Ambient Temperature Range
- -25° to 100° C (-13° to 212° F)
Approvals & Certifications
- EN 60079-0 - Explosive Atmospheres
- EN 60079-15 - Explosive Atmospheres
- ABS - American Bureau Shipping
- ATEX Zone 2 II 3 G Ex NA IIA T3 Gc -20° < Ta < 85° C
- BV
- CE
- DNV
- EMC: EN 61000-6-3 & EN 61236-1 (Emission), EN 61000-6-2 & EN 61236-1 (Immunity)
- GL
- KRS
- LRS
- NKK
- RINA
BSP Connection
- G 1/2" Male
- G 1/4" Male
Burst Pressure
- psi: 725.2 (kPa: 5,000, bar: 50)
Compensated Temperature
- 0° to 80° C (32° to 176° F)
Electrical Connectors
- Plug PG11 (EN 175301-803-A)
- Plug PG13.5 (EN 175301-803-A)
- Plug PG9 (EN 175301-803-A)
Electrical Protection
- Polarity
- Short Circuit
Environmental Protection
- Explosion-proof
- IP65
Gasket Material
- FPM
- NBR
Hysteresis
- ≤ ± 0.1 % of Full Scale
Materials of Construction
- Glass-Filled Polyamid, PA 6.6 - Electrical Parts
Metric Connection
- M14 x 1.5 Male
Non-Linearity
- ≤ ± 0.2 % of Full Scale - BFSL
Output
- 4-20 mA, 2-Wire - Nominal Output Signal (Short Circuit Protected)
Overpressure & Static Pressure Limits
- psi: 50.76 (kPa: 350, bar: 3.5)
Pressure Cycles
- 10 Million - Durability
Pressure Range
- kPa: -7 to 25
- mbar: -70 to 250
- psi: -1.01 to 3.63
Pressure Type
- Gauge
Process Temperature
- -25° to 100° C (-13° to 212° F)
Repeatability
- ≤ ± 0.1 % of Full Scale
Response Time
- < 2 ms
Rotation
- Mounting Position Error for 180° Rotation
Shock
- 1 m Free Fall as per IEC 60068-2-32
- 500 G, 1 ms as per IEC 60068-2-27
Storage Temperature
- -40° to 125° C (-40° to 250° F) - Transport/Storage Temperature Range
Supply Voltage
- 9-32 Vdc - Reverse Polarity Protected
Temperature Range
- 20° to 85° C (68° to 185° F) - ATEX Zone 2 Sensor Temperature Range
- -40° to 85° C (-40° to 185° F) - Norma Sensor Temperature Range
Torque
- 177 to 221 in/lb
Vibration
- Random Vibration: 7.5 G RMS, 5 to 1000 Hz as per IEC 60068-2-64
- Sinusoidal Vibration: 15.9 mm-pp, 2 to 25 Hz as Per IEC 60068-2-6
- Sinusoidal Vibration: 20 G, 25 to 2000 Hz as per IEC 60068-2-6
Wetted Materials
- 316L Stainless Steel, EN 10088
