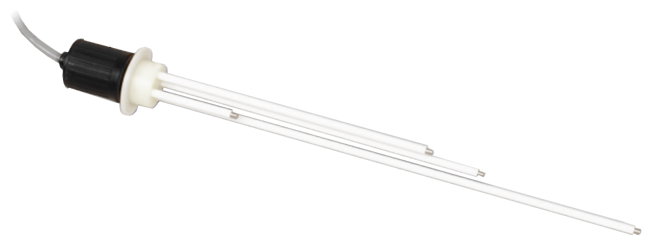

Warrick Series 3MT Food Grade Electrode Fitting
Brand: Gems Sensors, IncDesigned for use in food, beverage and pharmaceutical applications where cleanliness is vital.
Series 3MT fitting assemblies are made of FDA-approved materials and accommodate up to four (4) teflon-covered probes with polished tips to meet your most demanding application requirements.
Engineered for fast removal of fitting to facilitate cleaning and sterilization.
Features- Easy removal for cleaning
- CSA approved
- FDA approved materials
Specifications
Brand
Adjustment Type
- Probe Length: Factory Set (Pre-Set)
Applications
- CIP- Systems
- Food & Beverage
- Pharmaceutical
Approvals & Certifications
- CSA
- FDA
Enclosure, Body Material
- Typical 66 Nylon
Pressure Range
- psig: 0 to 150 (kPa: 0 to 1,000, bar: 0 to 10)
Process Connection - Other
- 45° Bevel
Sensor / Probe Length
- 6 to 36" (152.4 to 917.4 mm)
Sensor / Probe Material
- Teflon Covered 316 Stainless Steel Probes. Tip Polished to RA < 25 microns, Max.
Temperature Range
- 0° to 65° C (32° to 149° F)
Tri-Clamp Connection
- 2" Tri-Clamp
- CIP- Systems
- Food & Beverage
- Pharmaceutical
