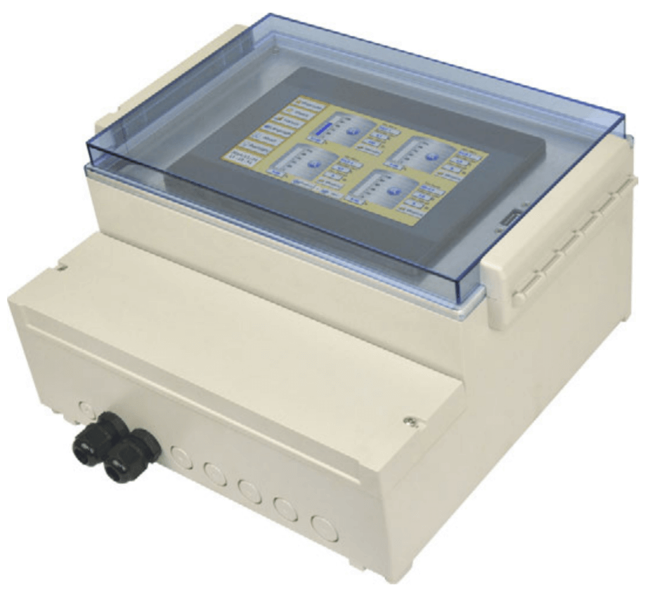

RCU2 Remote Control Unit
Brand: FineTekRemote Control Unit 2 (RCU2) is the solution for small and medium system with total sensor less than 8.
RCU2 can be located on the wall at desired installation location, provide the display screen with touch user interface.
The control unit is intuitive and convenient with the easy-to-use touch screen.
RCU2 read data from sensor via RS485 interface, display on the screen, and can transmit to PC also.
Features- Easy-to-use touch screen, simple operation
- Using Microcomputer control, the operation time is more accurate
- Remote monitoring and control with long distance
- Anti-electric shock designed box, protect components inside
- RS-485 communication interface (modbus protocol)
- Integrated memory storage, can record data up to 90 days
- User Setting is available
.png)
Specifications
Brand
Approvals & Certifications
- CE
Communication
- COM: RS-232
- COM2: RS-485 2W/4 W
- Wireless
Display
- 7" (800 x 480) TFT LCD, Resistive Touch
Environmental Protection
- IP65
Operating Temperature
- 0° to 50° C (32° to 122° F)
Output
- 1 A, Max.
- 24 Vdc
Power Supply
- 100-220 Vac, 50/60 Hz
Storage Temperature
- -20° to 60° C (-4° to 140° F)
