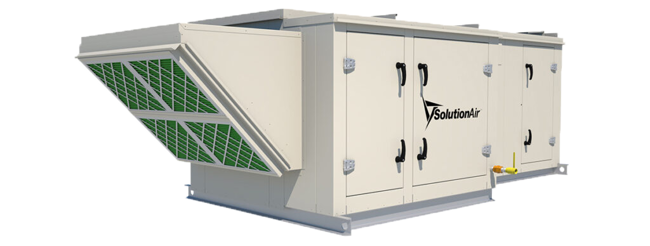

Direct Fired Unit
Brand: SolutionAir Group
SolutionAir AW-D units use ultra-efficient direct-fired burners allowing better control over discharge temperature. This method eliminates the use of a heat exchanger by burning the combustible directly in the airstream, achieving 100% combustion efficiency and a 92% overall thermal efficiency (8% of the total heat goes into the latent heat of water formed by combustion).
AW-Ds can provide up to a 30:1 turn down ratio. Providing this high of turndown and a fully modulating system, the unit will provide precise temperature control to the space which results in the highest IAQ and comfort. This smooth operation also maximizes the life of the equipment in lieu of constantly staging valves and stopping and starting fans.
Features- Output Range: 42 - 6,500 MBH
- Airflow Range: 1,950 - 50,000 CFM
- Turndown: From 6:1 to 30:1
- Minimum Thermal Efficiency: 92%
- Design temperature rises from 120° to 20° F
- Maximum discharge temperatures of 160° F
- Factory tested
- Automatic season changeover
- CSA approved design
- CSA certified in accordance with ANSI Z83.25/CSA 3.7, ANSI 83.18
