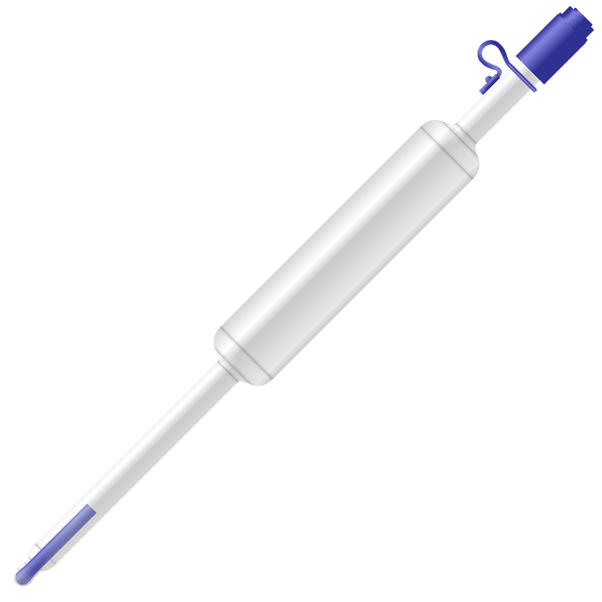

PH4FE pH Sensor for Fermentation

Brand: Yokogawa Electric Corporation

Yokogawa’s line of pH sensors has been strengthened by the inclusion of the polymer electrolyte pH sensor PH4P/PH4PT, HF-resistant pH sensor PH4F/PH4FT, pH sensor for chemical process PH4C /PH4CT, and pH sensor for fermentation PH4FE.

Like the pH sensor series, the ORP sensor series is also offered as a complete lineup with the polymer electrolyte ORP sensor OR4P, ORP sensors for chemical process OR4C in addition to standard Ryton pH/ORP sensors.
Features
  • Inner solution can be refilled.
  • There are 2 pores of ceramic liquid junctions.
  • The reference electrode is composed of silver ion trap which inhibits the generation of sulfide around the ceramic liquid junction.

Specifications

Applications

  • Fermentation (Sterilization Process)
  • Solutions Containing Organic Solvents

Cable Length

  • 9.84 to 65.61 ft (3 to 20 metres)

Diameter

  • Glass Tube Diameter: 0.47" (12 mm)

Diaphragm Material

  • Ceramic Junction x 3

Electrical Connectors

  • Fork Terminal
  • Pin Terminal

Enclosure, Body Material

  • Glass

Insertion 'U' Length

  • Shaft Length: 4.7" (120 mm)
  • Shaft Length: 7.8" (200 mm)
  • Shaft Length: 9.8" (250 mm)

Measuring Range

  • pH: 0 to 12

Pressure Range

  • Measuring Pressure: Atmospheric Pressure to psi: 87.02 (kPa: 600, bar: 6)

Temperature Range

  • Cable Measuring Temperature: -20° to 70° C (-4° to 158° F)
  • Measuring Temperature: 0° to 105° C (32° to 221° F) (Sterilization Temperature: Max.

  • Fermentation (Sterilization Process)
  • Solutions Containing Organic Solvents
