DP3 Free Range Type Pulse to Analog Converter
Brand: Yokogawa Electric Corporation

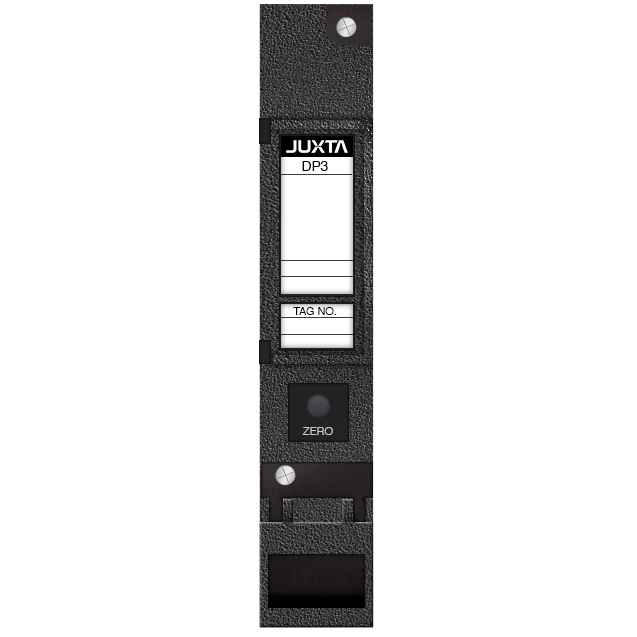

The DP3 is a nest-mounting type DCS-supported pulse-to-Analog converter that receives pulse-train signals and converts them into DC voltage or DC current signals proportional the the frequency.
Features- Internal filter can be set to eliminate chattering (in cases where the input frequency range is up to 100 Hz, the pulse width is 3 Milliseconds or more)
- On-site adjustment for setting the zero/span, low cut point, Input/Output monitoring etc. can be performed from the host system or a handy terminal
Specifications
Accuracy
- Output 1: ± 0.3 % of Span
- Output 2: within ± 0.2 % of Relative Error between Output-1 & 2
Consumption
- 60 mA (1-5 V) at 4 Vdc - Current Consumption
- 90 mA at 4 Vdc (4-20 mA) - Current Consumption
Current
- 1-24 mA DC - Span
Electrical Connectors
- M4 Screw Terminal
Frequency
- 0 to 10,000 Hz - Input Frequency
Humidity
- 5 to 90 % RH, Non-Condensing
Insulation Resistance
- 100 MΩ or more at 500 Vdc between Input & Output, Output & Power Supply, & Input & Power Supply
Mounting
- Nest-Mounting
Operating Temperature
- 0° to 50° C (32° to 122° F)
Output
- 0-100 mVdc
- 0-24 mA DC
- 10 mV - 20 V - Span (DC)
- -10 to 10 Vdc
Power
- 0.5 W (12 Vdc Power Supply) - Rated Power
- 2 W (24 Vdc Power Supply) - Rated Power
Power Supply
- 24 Vdc ± 10 % (Ripple Content 5 % Peak-to-Peak or Less)
Power Supply Effect
- ± 0.1 % of Span or Less for the Fluctuation within the Operating Range of Power Supply Voltage Specification
Resistance
- 1 Kiloohm (Selectable with Switch Inside) - Internal Load Resistance
- 15 kΩ or more (Contact or Voltage Pulse) - Input Resistance
- 200 ohms (Selectable with Switch Inside) - Internal Load Resistance
- 510 ohms (Selectable with Switch Inside) - Internal Load Resistance
Span & Zero Adjustments
- ± 10 %
Supply Voltage
- -1 to 8 Vdc - Low Level Voltage Pulse
- 1,500 Vac/minute between Input & (Output & Power Supply) - Withstand Voltage
- 2-24 Vdc - High Level Voltage Pulse
- 500 Vac/minute between Output & Power Supply - Withstand Voltage
Temperature Effect
- ± 0.2 % of Span or Less for a Temperature Change of 10° C (18° F) - Effect of Ambient Temperature
Zero Offset
- 0 to 200 % - Zero Elevation (Current Signal)
- -100 to 200 % - Zero Elevation (Voltage Signal)
