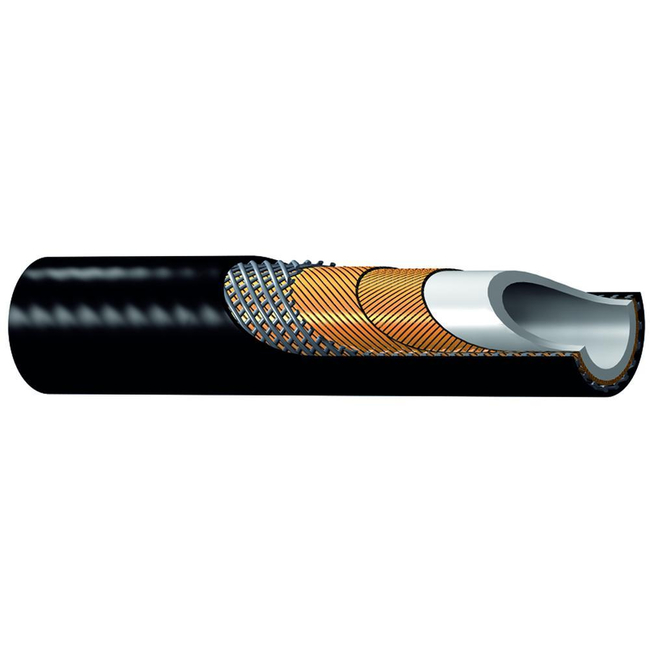

High Pressure Hose Series - 2380N
Brand: Parker HannifinParker Polyflex High Pressure 2380N Hoses are developed for High and Ultra High Pressure applications.
The excellent handling increases operator efficiency and long service life reduces costly down times.
Superior safety standards are applied for the benefit of the operator.
Features- Replaces steel pipe where flexibility is important
- A manufacturing procedure applying water pressure to produce complex hollow parts made from pipe-like basic materials
- Compact design hereby handling and space improvements
- Compliant with DIN EN 1829-2 thus legal backup and approved safety hazard control
- Excellent operator safety as a result of highest quality standards which are met
- Design factor: 4:1
Specifications
Brand
Hose I.D. (DN)
- 4, 6, 8, 10, 12, 32
Hose I.D. (inch)
- 5/32", 1/4", 5/16", 3/8", 1/2", 1-1/4"
Hose I.D. (mm)
- 3,9, 6,3, 8,3, 9,8, 12,9, 31,8
Hose I.D. (Size)
- -25, -4, -5, -6, -8, -20
Hose O.D. (inch)
- 5/32", 1/4", 5/16", 3/8", 1/2", 1-1/4"
Hose O.D. (mm)
- 9,7, 13,3, 15,8, 17,9, 22,9, 44
Maximum Working Pressure (bar)
- 750 - 1000
Maximum Working Pressure (Mpa)
- 75 - 100
Maximum Working Pressure (psi)
- 10875, 10150, 9060, 8337, 7975, 3985, 15950, 14500
Maximum Working Temperature (°C)
- +70° C
Maximum Working Temperature (°F)
- +158° F
Minimum Bend Radius (inch)
- 2,17 - 15,75
Minimum Burst Pressure (MPa)
- 300, 280, 250, 230, 220, 110
Minimum Burst Pressure (psi)
- 43500, 40600, 36250, 33350, 31900, 15950
Minimum Working Temperature (°C)
- -10° C
Minimum Working Temperature (°F)
- 14° F
Weight (kg/m)
- 0,16, 0,27, 0,35, 0,44, 0,68, 1,83, 0,28
Weight (Lbs/Ft)
- 0,11 - 0,19
- Industrial cleaning
- High pressure service for the construction and shipbuilding industry
- For working pressure up to 75 MPa (10.875 psi)
