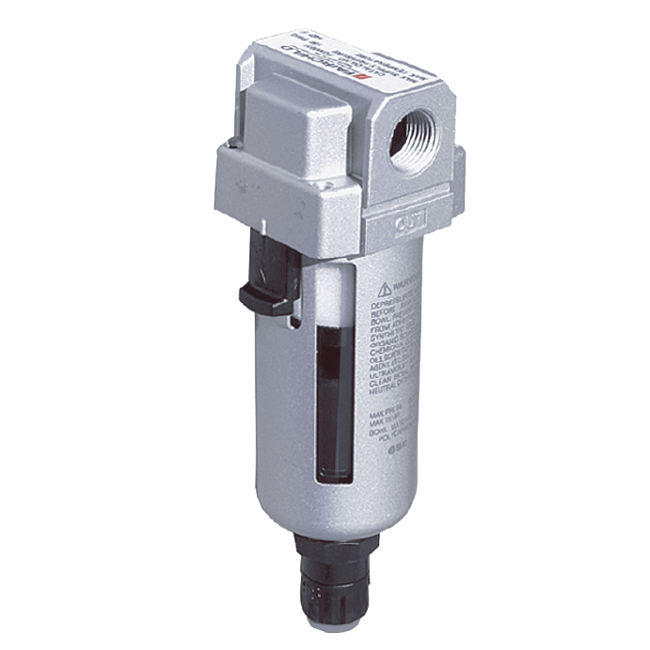

Fairchild Automatic Drain Filter, FGF, FGM, FGD

FGF/FGM/FGD Automatic Drain Filter

Brand: Fairchild Industrial Products
Add Product to My Catalog

Fairchild Automatic Drain Filter, FGF, FGM, FGD Fairchild Automatic Drain Filter, FGF, FGM, FGD
The Rotork Fairchild Automatic Drain Filter Series is designed for use in systems that require clean, oil-free air.

This series consists of a particulate filter and two coalescing filters with automatic drains. You can easily replace all filter elements.

Automatic Drain Filters are highly effective in removing oil and liquid-borne particulate matter.

These units are recommended for use when clean air or inert gas environments are required in laboratory air, process control, instrument and compressed air systems.
Features
  • Pre-filters remove water and dirt particles from air lines up to a maximum size of 5 microns
  • Coalescing filters are available in 0.3 micron and 0.01 micron sizes to remove 99.9% of oil mist
  • Maximum operating pressure of 150 psig
  • Differential pressure automatic drain provided on 1/4" port, 5-micron pre-filter. float type automatic drain provided on all others
  • Easily replaceable filter element saves service time
  • Die cast aluminum or zinc body with polycarbonate bowl and metal guard assures safety and durability

1 - 9 of 9 Part Numbers
FGD0021
FGD0021
  • Filter - 0.01 Micron Micro-Mist Separator
  • Port Size - 1/4"
  • Thread Type - NPT Thread
FGD0031
FGD0031
  • Filter - 0.01 Micron Micro-Mist Separator
  • Port Size - 3/8"
  • Thread Type - NPT Thread
FGD0041
FGD0041
  • Filter - 0.01 Micron Micro-Mist Separator
  • Port Size - 1/2"
  • Thread Type - NPT Thread
FGF0021
FGF0021
  • Filter - 5 Microns Filter
  • Port Size - 1/4"
  • Thread Type - NPT Thread
FGF0031
FGF0031
  • Filter - 5 Microns Filter
  • Port Size - 3/8"
  • Thread Type - NPT Thread
FGF0041
FGF0041
  • Filter - 5 Microns Filter
  • Port Size - 1/2"
  • Thread Type - NPT Thread
FGM0021
FGM0021
  • Filter - 0.3 Micron Mist Separator
  • Port Size - 1/4"
  • Thread Type - NPT Thread
FGM0031
FGM0031
  • Filter - 0.3 Micron Mist Separator
  • Port Size - 3/8"
  • Thread Type - NPT Thread
FGM0041
FGM0041
  • Filter - 0.3 Micron Mist Separator
  • Port Size - 1/2"
  • Thread Type - NPT Thread
1 - 9 of 9 Part Numbers

Specifications

Brand

Ambient Temperature Range

  • -5° to 60° C (23° to 140° F)

Element

  • Synthetic Fiber & Polyurethane Foam

Enclosure, Body Material

  • Die Cast Aluminum
  • Die Cast Zinc

Filter

  • 0.01 micron
  • 0.3 micron
  • 5 microns

Materials of Construction

  • Polycarbonate with Metal Guard - Bowl

Mounting

  • Mounting Bracket

NPT Connection

  • 1/2" NPT Female
  • 1/4" NPT Female
  • 3/8" NPT Female

Pressure Range

  • bar: 1 to 10
  • kPa: 100 to 1,000
  • psig: 15 to 150
