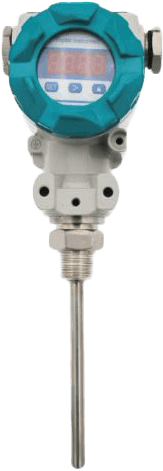

Oil Temperature Sensor

Brand: Xi'an UTOP Measurement Instrument Co, Ltd
Add Product to My Catalog

UTB9 oil temperature sensor uses thermocouple or thermal resistor as temperature sensitive element, it can measure temperature of all kinds of liquid, steam and gas medium from -200 to 1800℃，and transform thermocouple's or thermal resistance's signal to 4~20 mA standard signal, simultaneously has real-time indication function on the spot.

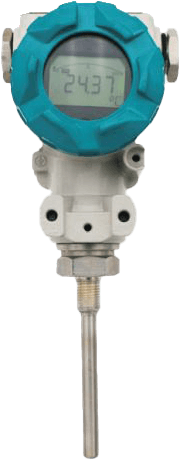

This oil temperature sensor has firm & artistic housing, two-layer construction, 3½" LCD or LED display, 0-100% indicator optional.

UTB8 uses integrated electric circuit, which guarantees its stable signal and clear display, this is very convenient to calibrate and inspect the gauges on the scene. UTB8 has general type and explosive-proof type.
Features
  • Range:-200℃ ~1800℃
  • Integrated structure can display its real-time measuring value
  • High accuracy, anti-interference, good long-term stability
  • Signal is precise, can remote transmission (max. 1000 meters)

Specifications

Brand

Measured Medium

  • Gas or Liquid Compatible to Stainless Steel

Temperature Ranges

  • Thermocouple: E,K, S, B
  • Thermal Resistor: PT100, Cu50

Insert Depth

  • 50 ~ 2000 mm (can be made upon customer's request)

Accuracy

  • Thermoresistor: 0.25 % Full Scale, 0.5 % Full Scale (Standard)
  • Thermocouple: 0.75 % Full Scale

Output Signal

  • 4-20 mA

Long-Term Stability

  • < 0.25 % Full Scale/year

Supply Voltage

  • 24 V ± 10 % DC

Load Resistance

  • RL(max) = (V-12)/0.02, V: Power Supply of Transmitter

Insulation Resistance

  • 100 MΩ @ 50 Vdc

Operating Temperature Range

  • -20° C ~ +60° C

Display

  • LCD Digital Indicator in ° C unit, -1999~1999

Temperature Coefficient of Zero

  • 0.2 % Full Scale/10° C

Temperature Coefficient of Span

  • 0.2 % Full Scale/10° C

Process Connection

  • M27 x 2 (Male) or others

Electrical Connection

  • 1/2" NPT or M20 x 1.5 (Female)

Material of Wetted Parts

  • 1Cr18Ni9Ti Stainless Steel

Material of Housing

  • Cast Aluminum

  • UTB9 Oil Temperature Sensor is widely used in Chemical Industry, Petroleum Industry, Metallurgy Industry, Electric Power etc
