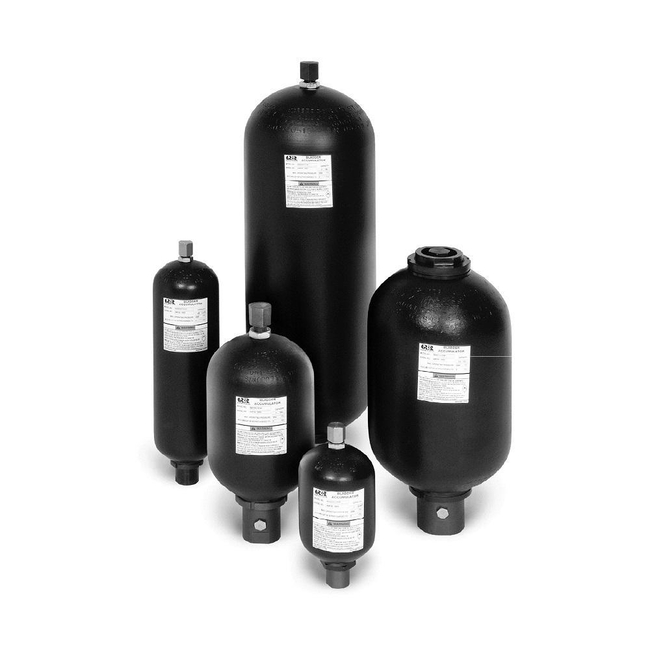

Bladder Accumulator - BA Series
Brand: Parker HannifinParker's BA Series bladder type accumulator is a proven design which has served both the industrial and mobile hydraulic markets, providing energy management solutions for many hydraulic system applications.
Offering a standard, globally certified bladder accumulator (ASME, PED(CE), CRN, and AS1210) is Parker’s approach at one accumulator design certified for most markets, geographies and applications.
This new design meshes the very best of the Greer and Olaer Bladder Accumulator brands. As the global leader in motion control, Parker appreciates that our customers demand one product that is available and acceptable worldwide.
Parker hydro-pneumatic bladder accumulator products are made to the highest quality standard and because of our in-house bladder molding operations, we offer extremely competitive lead times.
The heart of any bladder accumulator is the rubber bladder bag, and Parker bladders are engineered and manufactured in our own facility and subjected to our own high-quality inspection standards.
Parker’s hydraulic bladder accumulators are ideal for shock absorption, auxiliary power, supplemental flow, noise dampening and much more.
Features- Global Certifications Standard: ASME, PED/CE (97/23/EC), CRN (Canada), AS120 (Australia)
- Other Certifications Available: China (SELO), Russia (CUTR), Brazil (NR-13), ABS, DNV, etc.
- 3,000 psi (3 KSI) to 10,000 psi (10 KSI) designs Bottom and Top Repairable designs
- Lightweight, Compact construction in capacities from 10 in³ to 15 Gallons and larger
- Bladder compounds molded in-house: Nitrile, Hydrin, Fluorocarbon, Butyl, EPR, etc.
- Highly tolerant of fluid contamination and extreme temperatures
- Very quick response time and ideal for high frequency, dithering applications
- Several Gas Valve options: Schrader, Military, and Poppet-style
- Many Fluid Port Options: SAE, NPTF, Code 61 & 62 4-bolt split flange, BSPP, High Flow, etc.
- Water and Chemical Service options: Skotchkoted or plated shell and stainless steel parts
- Wide range of compounds for a variety of fluids - temp. ranges from -40°F to 250°F (-40°C to 121°C)
- Flow rates up to 600 GPM (2270 LPM)
- Custom Options: Stainless Shells, Special Bladder Polymers, Suction Stabilizer, Pulsation Dampener, etc.
Specifications
Brand
Additional Options
- Water Service, Chemical Service, High Flow
Approvals & Certifications
- Others Available Include: ABS, DNV, NR-13, CUTR, DOSH, SELO, & Others
Body Material
- Chrome-Molybdenum Alloy Steel
Bore Diameter (inch)
- Up to 8"
Bore Diameter (mm)
- Up to 203.2 mm
Compression Ratio
- Up to 4:1
Diameter (inch)
- Up to 9.65"
Diameter (mm)
- Up to 245 mm
Elastomer Material
- Nitrile, Butyl, Fluoroelastomer, EPR, Hydrin
Height (inch)
- Up to 79.56"
Height (mm)
- Up to 2021 mm
Maximum Flow Rate (gpm)
- Up to 600 gpm
Maximum Flow Rate (Lpm)
- Up to 2271 Lpm
Maximum Operating Pressure (bar)
- Up to 690 bar
Maximum Operating Pressure (psi)
- Up to 10,000 psi
Meets Certifications
- ASME, PED (CE), CRN, AS1210, & ASME Appendix 22
Port Connection Size (inch)
- Up to 2"
Port Connection Type
- SAE, BSPP, NPT, Flange
Repairable
- Top Repairable, Bottom Repairable
Temperature Range (°C)
- -40° to 121° C
Temperature Range (°F)
- -40° to 250° F
Volume (Gallons)
- Up to 15 Gallons
Volume (L)
- Up to 56.8 L
Weight (kg)
- Up to 221 kg
Weight (Lbs)
- Up to 488 lb
- Shock Absorption
- Auxiliary Power
- Supplemental Flow
- Noise Attenuation
- Transfer Barrier
- Energy Conservation
- Thermal Expansion
- Emergency Power
- Leakage Compensation
Documentation
Data Sheets
- Bladder Accumulator Installation Disassembly HY10 1632 M2 1 pdf 4.4 MB
- Bladder Accumulator Labeling Stamping HY10 1632 M2 3 pdf 2.3 MB
- Bladder Accumulator Overview BA Series pdf 970 KB
- Bladder Accumulator Pre charging HY10 1632 M2 2 pdf 1.3 MB
- Bladder Accumulator Transport Disposal HY10 1632 M2 4 pdf 1.8 MB
- New PED directive UK Information Letter pdf 230 KB
