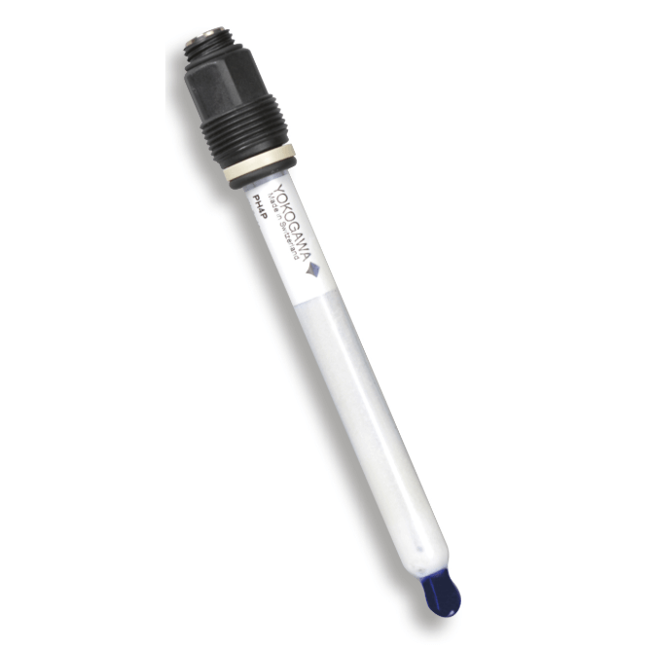

PH4P, PH4PT, PH4F, PH4FT pH Sensor
Brand: Yokogawa Electric Corporation
Yokogawa’s line of pH sensors has been strengthened by the inclusion of the polymer electrolyte pH sensor PH4P/PH4PT, HF-resistant pH sensor PH4F/PH4FT, pH sensor for chemical process PH4C /PH4CT, and pH sensor for fermentation PH4FE.
Like the pH sensor series, the ORP sensor series is also offered as a complete lineup with the polymer electrolyte ORP sensor OR4P, ORP sensors for chemical process OR4C in addition to standard Ryton pH/ORP sensors.
Features- Polymer Electrolyte pH Sensor PH4P, PH4PT
- Allows pH/ORP Measurement Under Severe Conditions, such as where the Process Fluid is Heavily Contaminated or Contains Sulfide Ion.
- With Polymer used as the Inner Solution, the Liquid Junction is Large (Around 1.0 mm) and there are 2 Single Pores, which Prevent Clogging.
- pH Sensor with RTD (Resistance Temperature Detector) PH4PT is also Available.
- HF Resistant pH Sensor PH4F, PH4FT
- The Special Sensing Membrane Allows Measurement of Solutions or Drainage Containing Hydrofluoric Acid.
- With Polymer used as the Inner Solution, the Liquid Junction is Large (Around 1.0 mm), and there are 2 Single Pores, which Prevent Clogging.
- pH Sensor with RTD PH4FT is also Available.
Specifications
Applications
- Contaminating & Sulfide Ion Containing Solutions - for Model pH4P, pH4PT
- Wastewater Containing Hydrofluoric Acid - for Model pH4F, pH4 ft
Cable Length
- 9.84 to 65.61 ft (3 to 20 metres)
Cable Material
- Cable Jacket Material: PVC (Polyvinyl Chloride)
Contents
- Polymer Electrolyte Including KCl - Inner Solution in Reference Electrode
Diameter
- Glass Tube Diameter: 0.47" (12 mm)
Electrical Connectors
- Fork Terminal
- M3 Ring Terminal
- M4 Ring Terminal
- Pin Terminal
Enclosure, Body Material
- Glass
Insertion 'U' Length
- 4.7" (120 mm)
Materials of Construction
- Inner Solution in Reference Electrode: Polymer Electrolyte Including KCl
Measuring Range
- pH: 2 to 11 pH - for Model pH4F, pH4 ft
- pH: 2 to 14 pH - for Model pH4P, pH4PT
O-Ring Material
- FFKM (Perfluoroelastomer)
- Fluororubber (FPM)
Process Temperature
- 0° to 100° C (32° to 212° F) - for Model pH4P, pH4PT
- 0° to 80° C (32° to 176° F) - for Model pH4F, pH4 ft
RTD Type
- Pt1000 - for Model pH4PT, pH4 ft
Temperature Range
- Cable Measuring Temperature: -20° to 70° C (-4° to 158° F) for Model pH4P, pH4F
- Cable Measuring Temperature: -30° to 70° C (-22° to 158° F) for Model pH4PT, pH4 ft
- Measuring Temperature: 0° to 110° C (32° to 230° F) for Model pH4P, pH4PT
- Measuring Temperature: 0° to 80° C (32° to 176° F) for Model pH4F, pH4 ft
Wetted Materials
- Adapter: Polypropylene (PP)
- Adapter: Rigid Polyvinyl Chloride (PVC)
- Adapter: Stainless Steel (SUS316)
- Contaminating & Sulfide Ion Containing Solutions
- Wastewater Containing Hydrofluoric Acid
