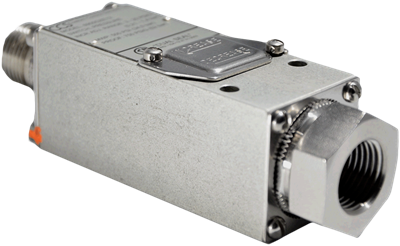

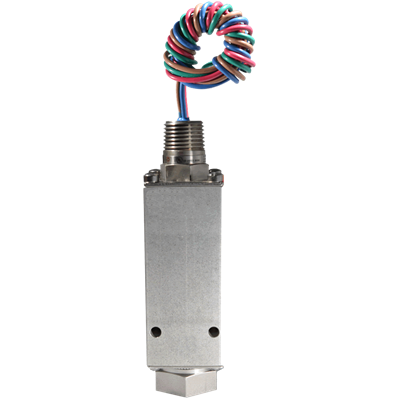

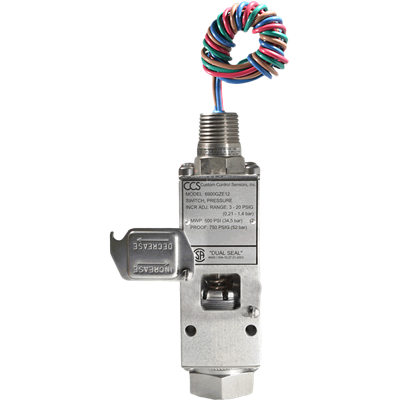

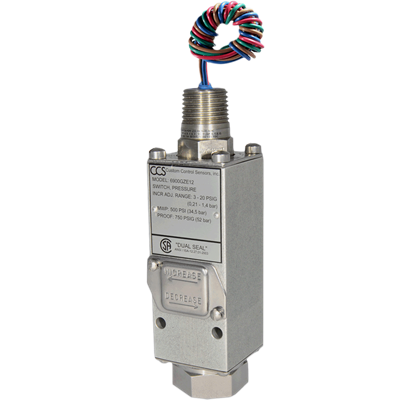

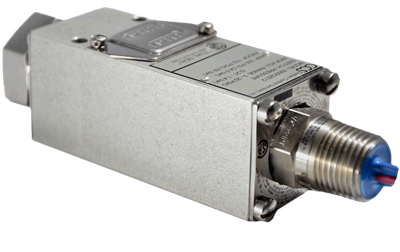

6900GZE Series Pressure Switch

by Custom Control Sensors
Images of products are only for information purposes and can change due to continuous product development, and as such are subject to change without notice. People from around the world enter and edit data on Yodify, as such it is not guaranteed that the data presented is current or accurate.

6900GZE Series Pressure Switch

6900GZE Series Pressure Switch

  • Adjustable Set Point Range:
    • Increasing: 3 to 3400 psig, 0.21 to 234 bar
    • Decreasing: 1 to 3120 psig, 0.07 to 215 bar
  • Deadband: Approximately 2 to 280 psi, 0.14 to 19.3 bar
  • System Pressure (Maximum): 500 to 5000 psig, 34.5 to 344.74 bar
  • Proof Pressure: 750 to 7500 psig, 51.7 to 517.11 bar
  • Wetted Materials:
    • Pressure Port: 1/2"-14 Female NPT 316 Stainless Steel Pressure Port
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CSA:
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CRN, CE Mark, NACE, NEMA
Product information may encapsulate the entire product series. Details may vary depending on the model.
show more
  • Adjustable Set Point Range:
    • Increasing: 3 to 3400 psig, 0.21 to 234 bar
    • Decreasing: 1 to 3120 psig, 0.07 to 215 bar
  • Deadband: Approximately 2 to 280 psi, 0.14 to 19.3 bar
  • System Pressure (Maximum): 500 to 5000 psig, 34.5 to 344.74 bar
  • Proof Pressure: 750 to 7500 psig, 51.7 to 517.11 bar
  • Wetted Materials:
    • Pressure Port: 1/2"-14 Female NPT 316 Stainless Steel Pressure Port
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CSA:
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CRN, CE Mark, NACE, NEMA
Product information may encapsulate the entire product series. Details may vary depending on the model.

Filter Inventory

10 models matching criteria
6900GCE14
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: UL, CSA, CE, CRN, CCC, Dual Seal
10 In Stock New
$341.14 USD
$121.48USD
$7.50 Shipping

6900GCE24
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: UL, CSA, CE, CRN, CCC, Dual Seal
1 In Stock New
$398.35 USD
$142.34USD
$7.50 Shipping

6900GCE16-7042
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SST Body, Approvals: UL, CSA, CE, CRN, CCC, Dual Seal
3 In Stock New
$319.00 USD
$176.32USD
$7.50 Shipping

6900GZE14-7042
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SST Body, SPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
1 In Stock New
$485.25 USD
$215.83USD
$7.50 Shipping

6900GCE12
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: UL, CSA, CE, CRN, CCC, Dual Seal
9 In Stock New
$341.14USD
$7.50 Shipping

6900GZEM22
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
3 In Stock New
$626.48USD
$7.50 Shipping

6900GZEM16
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
38 In Stock New
$689.51USD
$7.50 Shipping

6900GZEM18
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
16 In Stock New
$689.51USD
$7.50 Shipping

6900GZEM20
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CSA, CE, CRN, CCC, EAC, Dual Seal
16 In Stock New
$689.51USD
$7.50 Shipping

6900GCE18
CCS DUAL-SNAP Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: UL, CSA, CE, CRN, CCC, Dual Seal
6 In Stock New
$724.77USD
$7.50 Shipping

The Part Numbers & SKUs listed below have been added to Stores by Sellers, but they have not yet listed a price or inventory. Find the Part Number & SKUs you're looking for and request a quote from any of the affiliated Sellers!

6900GZE

Part Number / SKU

6900GZE

Loading...
Selected Configuration

    Specifications

    Agency Approvals

    • ATEX
    • CE
    • CRN - Alberta
    • CRN - British Columbia
    • CRN - Manitoba
    • CRN - N.W. Territories
    • CRN - Saskatchewan
    • CSA
    • cUL
    • Dual Seal
    • IEC Ex
    • LVD
    • PED
    • RoHS
    • RTN
    • UL

    NACE & NIST

    • NACE MR0175:2003

    Environmental Protection

    • Hazardous Area
    • NEMA 4, 7, 9, 13 / IP54, 66

    Set Point - Increasing

    • bar: 0.21 to 234
    • kPa: 20.7 to 23,442
    • psig: 3 to 3,400

    Set Point - Decreasing

    • bar: 0.07 to 215
    • kPa: 6.9 to 21,512
    • psig: 1 to 3,120

    Adjustment Type

    • Field Adjustable

    System Pressure

    • bar: 34.5 to 207
    • kPa: 3,447 to 20,684
    • psig: 500 to 3,000

    Proof Pressure

    • bar: 51.7 to 310
    • kPa: 5,171 to 31,026
    • psig: 750 to 4,500

    Operating Temperature

    • -40° to 86° C (-40° to 187° F)

    Deadband, Approximate

    • bar: 0.14 to 19.3
    • kPa: 13.8 to 1,931
    • psi: 2 to 280

    NPT Connection

    • 1/2" Female NPT Welded Diaphragm - Internal with Port Cavity

    Switch Type

    • DPDT
    • SPDT

    Electrical Assembly

    • 316 Stainless Steel
    • Hermetic Seal

    Electrical Rating

    • 1 A at 125 Vac, 50/60 Hz
    • 11 A at 125/250 Vac

    Electrical - Free Leads

    • 18" (45 cm) Free Leads
    • 18" (45 cm) Teflon Leadwire

    Electrical Contacts

    • Gold
    • Silver

    Electrical Connectors

    • 1/2" Male NPT
    • M20 Male

    Electrical Certification

    • ATEX - SIRA certified for potentially explosive atmospheres. Models 6****Y, II 2 GD Ex d IIC, 08ATEX
    • c-UL, U.L./CSA Explosion-Proof: Div. 1, 2 hermetically sealed electrical assembly P/N 46-1058 (46-1061 for M (DPDT) model option), listed by both Underwriter's Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA) Testing Laboratories (File No. LR22921) for hazardous locations, Class 1, Groups A, B, C, & D; Class 2 Groups E, F, & G.
    • IECEx - SIRA certified, SIR 10,0193X (Option Y)

    Enclosure/Body Material

    • 300 Stainless Steel
    • 316 Stainless Steel
    • Aluminum

    Process Connection Material

    • 316 Stainless Steel
    • Hastelloy® C-276
    • Monel

    O-Ring Material

    • EPR (Ethylene Propylene)
    • None
    • Viton

    Diaphragm Material

    • Hastelloy® C-276
    • Monel
    • Stainless Steel

    Service

    • Sour (Oil and Gas)

    Typical Applications

    • Boilers and Burners
    • Chemical and Petrochemical Plants
    • Chemical Refining and Processing
    • Degreasers and Evaporators
    • Fluid Management
    • Food Processing
    • Ground Support Equipment
    • Hydraulic and Lubrication Systems
    • Heating and Air Conditioning
    • Manufacturing Process
    • Marine Equipment
    • Offshore Oil Rigs
    • Oil & Gas
    • Pipelines
    • Power Generation
    • Power Plants
    • Pulp and Paper Mills
    • Pumps, Compressors and Turbines
    • Recovery Systems
    • Refineries
    • Reverse Osmosis Systems and Filters
    • Safety Systems
    • Specialized OEM Equipment
    • Steel Mills
    • Utilities, Water Treatment and Waste
    • Water and Sewage Treatment Facilities
