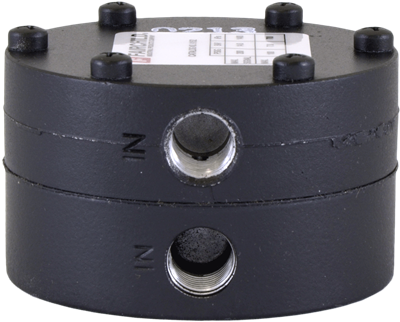

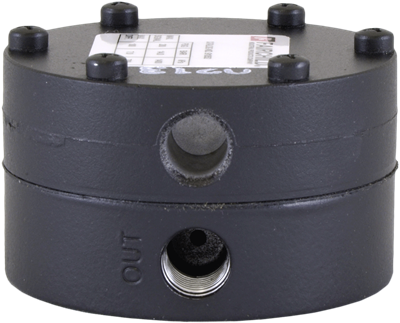

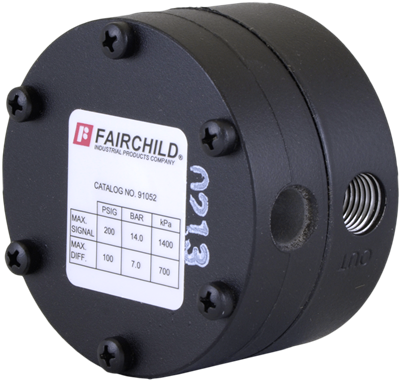

Model 91 High Pressure Selector Relay

Brand: Fairchild Industrial Products
Images are representations only. Product data may be supplied by a third party. Yodify does not guarantee accuracy or completeness of information.

Model 91 High Pressure Selector Relay

The Model 91 High Pressure Selector Relay is designed to select the higher of two signal pressures, and to provide a continuous output pressure (or pressure range) to a controller.

The ability to precisely control pressure switching and pressure monitoring functions make the Model 91 the logical choice in dead end or low flow applications such as precision control loops.
Features
  • Small, rugged design
  • Soft seat construction
  • Low selection differential
  • Fast response
  • Automatic switching
Product information may encapsulate the entire product series. Details may vary depending on the model. All specifications are subject to change without notice.
show more

Filter Inventory

Authorized Seller Brand Authorized Seller
Brand Authorized Seller
91052
FAIRCHILD Model 91 High Pressure Selector Relay, 1/4" NPT show more
25+ In Stock
$338.17USD
$7.46 Shipping

Sellers by Country

Browse sellers by country's initial
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Authorized Seller Brand Authorized Seller
Brand Authorized Seller
Alabama
Arizona
Arkansas
California
Colorado
Florida
Georgia
Idaho
Illinois
Indiana
Iowa
Kansas
Kentucky
Louisiana
Maryland
Massachusetts
Michigan
Minnesota
Mississippi
Missouri
Montana
Nebraska
Nevada
New Jersey
New Mexico
New York
North Carolina
North Dakota
Ohio
Oklahoma
Oregon
Other
Other
Pennsylvania
South Dakota
Tennessee
Texas
Utah
Virginia
Washington
West Virginia
Wisconsin
Wyoming
Other




Aisen del General Carlos Ibanez del Campo
Other






























Amnat Charoen
Other




An Giang

Do you know any Sellers of this product that aren't listed?

Recommend a New Seller
or
Add Product to Your Store

Model 91

Port Size

Elastomers

Port Thread

Specifications

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

BSP Connection

  • 1/4" BSPT Female

Differential Between Signals - Maximum

  • bar: 7
  • kPa: 700
  • psig: 100

Differential Between Signals - Minimum

  • > psig: 0.1 (bar: 0.007, kPa: 0.7)

Elastomers

  • Dupont Fairprene-Coated Fabric
  • FluoroCarbon (Viton)

Enclosure, Body Material

  • Aluminum Alloy

Mounting

  • None

NPT Connection

  • 1/4" NPT Female

Relief

  • Relieving

Sensitivity

  • Switching Differential: 0.1 psi (< 0.7 kPa), Maximum

Signal or Output Pressure - Maximum

  • bar: 14
  • kPa: 1,400
  • psig: 200

Trim Material

  • Brass

Vent

  • Straight
The Model 91 High Pressure Selector Relay is designed to select the higher of two signal pressures, and to provide a continuous output pressure (or pressure range) to a controller.

The ability to precisely control pressure switching and pressure monitoring functions make the Model 91 the logical choice in dead end or low flow applications such as precision control loops.
Features
  • Small, rugged design
  • Soft seat construction
  • Low selection differential
  • Fast response
  • Automatic switching
Product information may encapsulate the entire product series. Details may vary depending on the model. All specifications are subject to change without notice.
